IE4 motor are the next stage in high efficiency motor technology giving substantial reductions in power consumption with stable and reliable performance.
In this blog post we describe the engineering behind IE4 motors, how they differ from IE3 models and where they bring the greatest benefits in real-world operations such as oil & gas, utilities, manufacturing and water management.
Pumps, fans, conveyors and compressors are often the largest energy users in industrial plants.
At the end you’ll understand why so many facilities are moving to IE4 technology and how the upgrade can deliver tangible, long-term savings for your plant.
Overview: IE4 Motors
- IE4 motors reach over 95% efficiency and increase energy losses by 2-5% over IE3 models in continuous industrial runs.
- Pumps using IE4 motor efficiency draw 10-15% less power than expected in oil and gas industry.
- Bharat Bijlee IE4 motor uses LSPMSM tech for VFD-free starts, suitable for petrochemical compressors.
- ABB IE4 motor is made of cast iron for harsh environments reducing downtime of power plants.
Inside the Engineering of an IE4 Motor
IE4 motors are at the top of the IEC 60034-30-1 efficiency classes and are designed for maximum output with minimum energy loss. Instead of conventional induction layouts, IE4 designs employ advanced permanent magnet or synchronous reluctance (rotors) to reduce slip, heat generation and performance.
So a typical 15 KW IE4 electric motor runs between 95-97% efficient and converts almost all electrical input to usable mechanical power compared to older IE1/IE2, which lose a large share as heat.
Line-start permanent magnet synchronous variants like Bharat Bijlee’s Synchro Vert series get synchronous speed from the grid without any drives needed. This allows cooler operation, less bearing stress and more reliable uptime in harsh industrial environments.

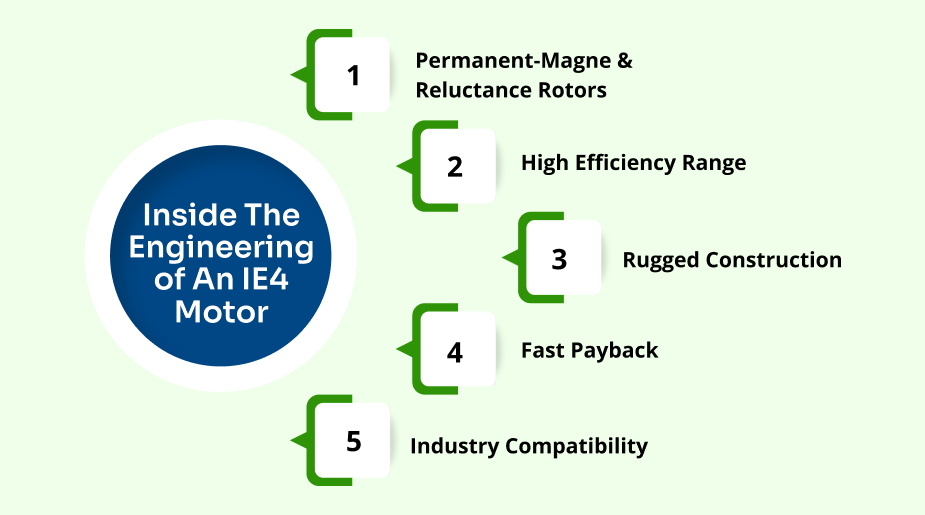

Key Engineering Highlights
- Permanent-Magne & Reluctance Rotors: Limit slip losses and keep synchronous speed constant for consistent torque.
- High Efficiency Range: Keeps 95-97% efficiencies across a broad load profile and maintains stable performance at part loads.
- Rugged Construction: IP55 ready housings with robust insulation systems are suitable for dusty, oily or high temperature operation.
- Fast Payback: Lower energy draw & lower maintenance lead to fast ROI in most industrial duty cycles.
- Industry Compatibility: Suitable for 415V three phase systems and for easy integration with existing Indian industrial setups.
How IE4 Motors Reduce Energy Costs
IE4 motors reduce electrical and mechanical losses that normally use power in industrial machinery. By optimising key components like windings, cores, bearings and magnetic paths they enable high efficiency and low cost of operation for continuous duty applications.
1. Lower Electrical Losses
High efficiency windings and low resistance reduce I²R losses and thus reduce a significant part of wasted energy in continuous duty applications.
2. Reduced Core Losses
Thin, high-grade silicon steel laminations reduce eddy current & hystereses losses allowing more torque per watt delivered by the motor.
3. Cooler, Low-Friction Operation
Optimised bearings and better cooling reduce mechanical friction and heat build-up reducing auxiliary cooling requirements.
4. Stable Torque & Lower Vibration
Smoother magnetic fields cause fewer bearing failures, longer equipment life, and lower maintenance costs.
5. Direct Energy Savings in Daily Use
Fans, pumps, compressors, process machines always use less power. IE4 electric motor deliver noticeable yearly savings and quick payback in multi-motor facilities.

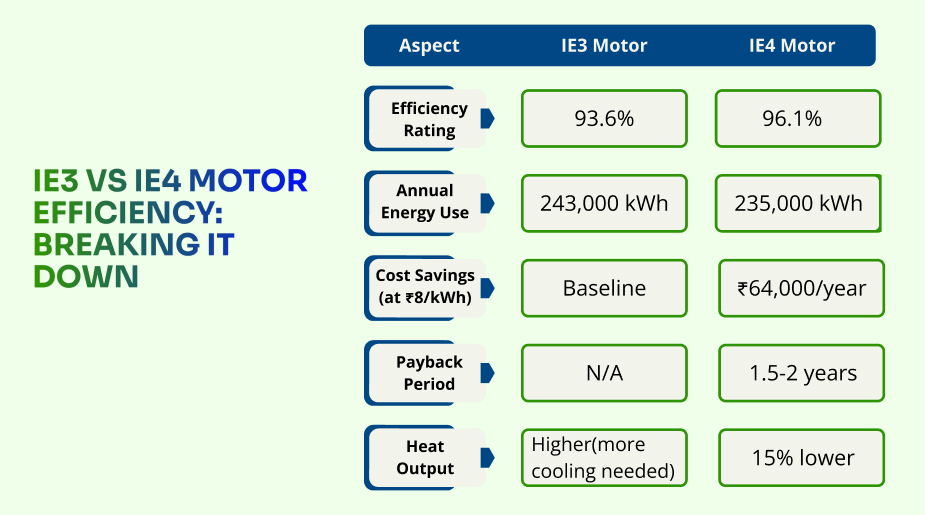

IE3 vs IE4 Motor Efficiency: Breaking It Down
IE4 electric motors generally have a higher upfront cost but payback time is short in energy intensive applications.
With tightening efficiency regulations and standard high-efficiency motors in new installations IE4 options are becoming more of a prospect than a premium upgrade.
| Aspect |
IE3 Motor |
IE4 Motor |
| Efficiency Rating |
93.6% |
96.1% |
| Annual Energy Use |
243,000 kWh |
235,000 kWh |
| Cost Savings (at ₹8/kWh) |
Baseline |
₹64,000/year |
| Payback Period |
N/A |
1.5-2 years |
| Heat Output |
Higher (more cooling needed) |
15% lower |
Apart from efficiency, IE4 designs exhibit better torque character because of the use of advanced permanent magnet and synchronous reluctance rotors.
Many models provide significantly higher pull-out torque with no additional current draw which is advantageous for pumps, compressors and process equipment with variable or heavy starting loads.
Applications: IE4 Across industries
IE4 motors are used across those sectors that require high efficiency, reliable torque and long working life. They are suitable for variable loads, frequent starts and tough environments hence preferred for new installations as well as retrofits.
Oil & Gas Operations: These energy efficient motors drive critical equipment such as crude-transfer pumps, booster pumps, submersible well pumps and separator units. Their excellent performance reduces heat generation, extends seal life and maintains torque stability in response to changing fluid viscosities.
Power Generation & Utility Plants: Thermal and gas-based power plants have IE4 motors running induced draft (ID), forced draft (FD) and primary air (PA) fans. Their compact frame sizes allow easy retrofitting in existing boiler rooms and low vibration and uniform air delivery ensure quiet combustion and even furnace temperatures. Many utilities select IE4 models for energy-efficiency reasons and to reduce auxiliary power consumption.
Water & Wastewater Management: They can be found in aerators, blowers, clarifier drives and high-capacity pumps. They provide cooler operating temperatures which prolong seal and bearing life especially in moisture rich or sediment heavy applications.
HVAC & Building Infrastructure: Commercial facilities use IE4 motors in cooling towers, air handling units, chilled water pumps & ventilation. Reduced heat generation, low noise and compatibility with VFDs of the motors maintain building comfort and reduce energy bills in 24/7 facilities like data centres, hospitals and airports.
Food & Beverage Manufacturing: Conveyor lines, homogenizers, blenders, positive displacement pumps, refrigeration compressors all benefit from the low-heating speed and low-speed profile of IE4. They deliver torque with low mechanical stress, are hygienic and ensure constant throughput in continuous production shifts.
Textile & Paper Mills: IE4 motors keep the line speed constant in carding machines, looms, rewinders and paper-press sections. They can run smoothly at controlled speeds to improve fabric quality, fiber breakage and paper web tension consistency over long production cycles.
Manufacturing & Industrial Automation: Robotic cells, CNC machines, compressors and precision conveyors benefit from the torque consistency of IE4 motors. In automated setups they provide constant acceleration and lower vibration as well as better operation accuracy for variable loads.
Finding the Right IE4 Motor: Key Considerations
And choosing an IE4 motor means more than picking a high-efficiency model. It involves tuning the motor for your application, operating environment & support requirements. Structured evaluation – Long term performance and reliable savings are guaranteed.
- Understand Your Load Profile
Perform a load audit to evaluate operating patterns. IE4 electric motors deliver the best returns in continuous or high-duty cycles (75% or more), and in variable-load applications when paired with a compatible VFD.
- Evaluate Brand Strengths
Different manufacturers work in certain environments. Models from global brands like ABB motor will have good protection for corrosive, chemical-duty areas; local options such as Bharat Bijlee will integrate with 415V grids and have broad service coverage in Indian industry.
- Verify Performance Through Testing
Efficiency labels give a baseline, but real-world use varies. Validate performance with internal or third party test rigs where possible to confirm torque, slip and temperature behaviour under load.
- Check Service and Spare Part Availability
More than marginal efficiency differences, support infrastructure is important. Select suppliers who stock spares and do a quick turn around, especially for mission critical operations where downtime means significant financial loss.
- VFDs for Variable-Load Applications
IE4 electric motors in combination with a high-quality VFD improves part-load efficiency, delivers better torque and maintains system performance in changing operating conditions.
Shrirang Enterprise: Your Source for IE4 Reliability
IE4 motors are nowadays widely applied for energy saving, system performance improvement and compliance with modern efficiency standards. And with advantages over IE3 models (+/- higher efficiency, lower heat generation, better torque stability) they provide measurable savings in Oil & Gas, Power generation, Chemical processing, Water management, Manufacturing.
Shri Rang Energy Efficient stocks a range of genuine IE4 electric motors from ABB and Bharat Bijlee We have motors for pumps, fans, compressors & process equipment supporting applications from automotive to industrial 415V systems.
So whether you are planning a new installation or replacing older equipment, our team can assess requirements, recommend models and give you a cost calculation of savings potential. Explore electric motor efficiency IE4 options for your plant and get advice on achieving long-term operational success.
Frequently asked questions (FAQs)
Q1. What is an IE4 motor and why is it more efficient?
A. IE4 motors are premium efficiency electric motors that use permanent magnet or synchronous reluctance designs to reduce slip, heat and electrical losses. This enables 95-97% efficiency, significantly higher than IE2 and IE3 motors.
Q2. How much energy can an IE4 motor save compared to IE3?
A. On average, IE4 motors consume 2–5% less energy than IE3 motors. In continuous-run applications like pumps and compressors, this can save ₹50,000–₹1,00,000 per motor annually, depending on the duty cycle and electricity cost.
Q3. What industries benefit the most from IE4 motors?
A. IE4 motors are most beneficial for oil & gas pumping systems, power plant fans, HVAC units, water treatment pumps, manufacturing conveyors, and food & beverage equipment—anywhere continuous or variable-load operation is required.
Q4. What is the payback period for upgrading to IE4 motors?
A. Although IE4 motors cost more upfront, most industrial plants achieve payback in 1.5–2 years due to lower energy bills, reduced heat losses, and lower maintenance costs.
Q5. Can IE4 motors run without VFDs?
A. Yes. Many IE4 motors, such as Bharat Bijlee’s LSPMSM SynchroVert series, can reach synchronous speed directly from the grid without a VFD. However, pairing with a VFD gives greater torque control and higher part-load efficiency.
